압력센서(S-23/25)(Pressure Transmitter)
수량
결제금액
605,000 원

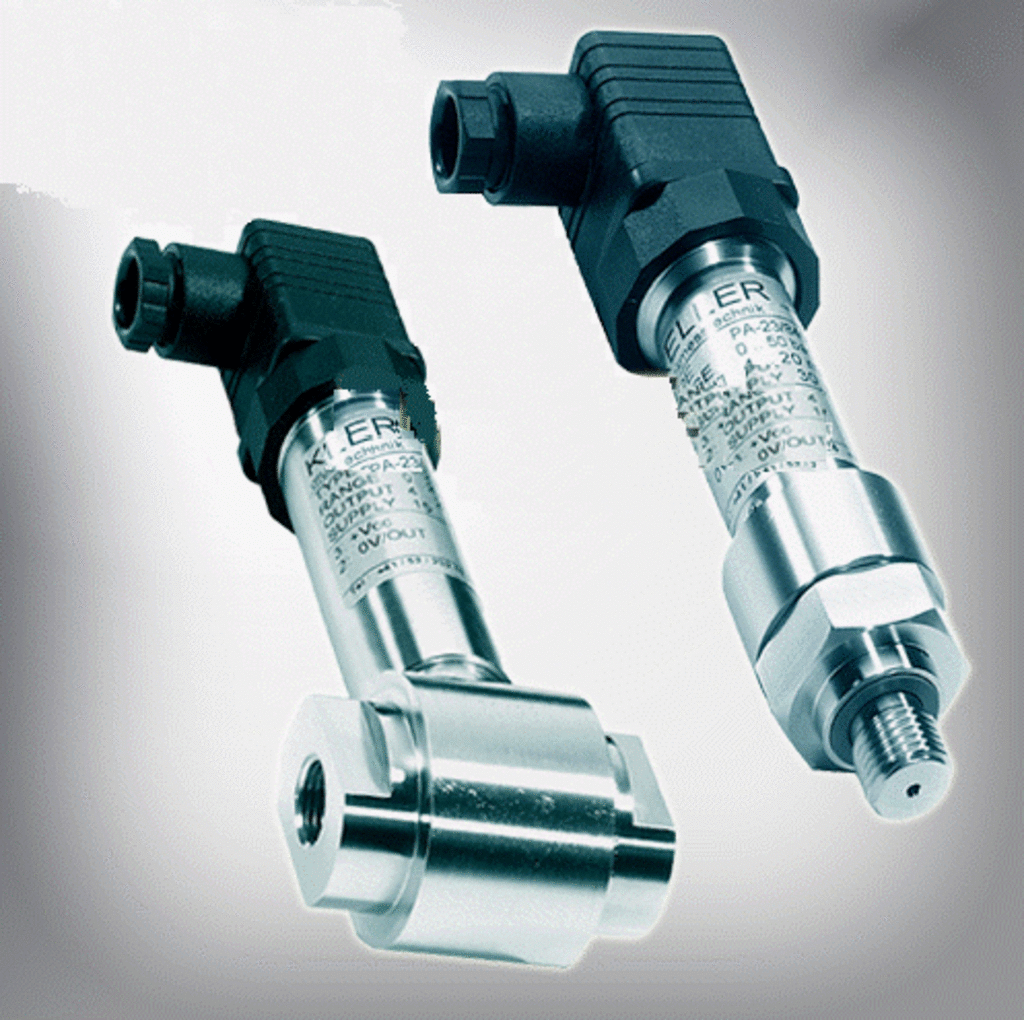

█ 압력 센서 (23/25series) (Pressure Transmitter)
◆특징 (Features)
▶ Series 23 Male pressure port (Accuracy: 0,5%FS, optional 0,1 and 0,2%FS)
▶ Series 25 Flush diaphragm (Accuracy: 0,5%FS, optional 0,1 and 0,2%FS)
◆ 제품사양(Specifications) ▷ 측정범위: 1. PR-23/25: -1/-0,5/-0,2/0,2/0,5/1/2/5/10/20bar 2. PD-23: 0,2/ 0,5/1/2/5/10/20bar 3. PAA-23/25: 0,2/0,5/1/2/5/10/20bar 4. PA-23/25: 1/2/5/10/20/50/100/200/400/600/1000 bar ▷ Linearity(1)+Hysteresis+Repeatability: ±0,2%FS typ., ±0,5%FS max ▷ Storage-/Operating Temperature: -40~100°C ▷ Compensated Temperature Range: -10~80°C ▷ Signal Output: Type 4~20 mA (2-WIRE)/0~20 mA(3-WIRE)/0~10 V(3-WIRE) ▷ Supply: 10~30 VDC / 10~28 VDC / 13~28 VDC ▷ Load Resistance(RΩ): (U-10V)/0,02A (U-5V)/0,02A > 5 k ▷ Electrical Connection - Plug DIN 43650, protection IP 65 - Cable (with reference tube for gauge); protection IP 65 ▷ Volumetric Change: < 0,1 mm3 ▷ Material in Media: Contact Stainless steel 316L (DIN 1.4435), viton ▷ Protection: IP65 ▷ Weight PR/PA/PAA: ≈ 180 g. PD: ≈ 440 g ▷ Insulation: > 100 MΩ@50 V ▷ Endurance: > 10 million cycles 0…100%FS at 25°C ▷ Frequency Response: 1 kHz (5 kHz option
