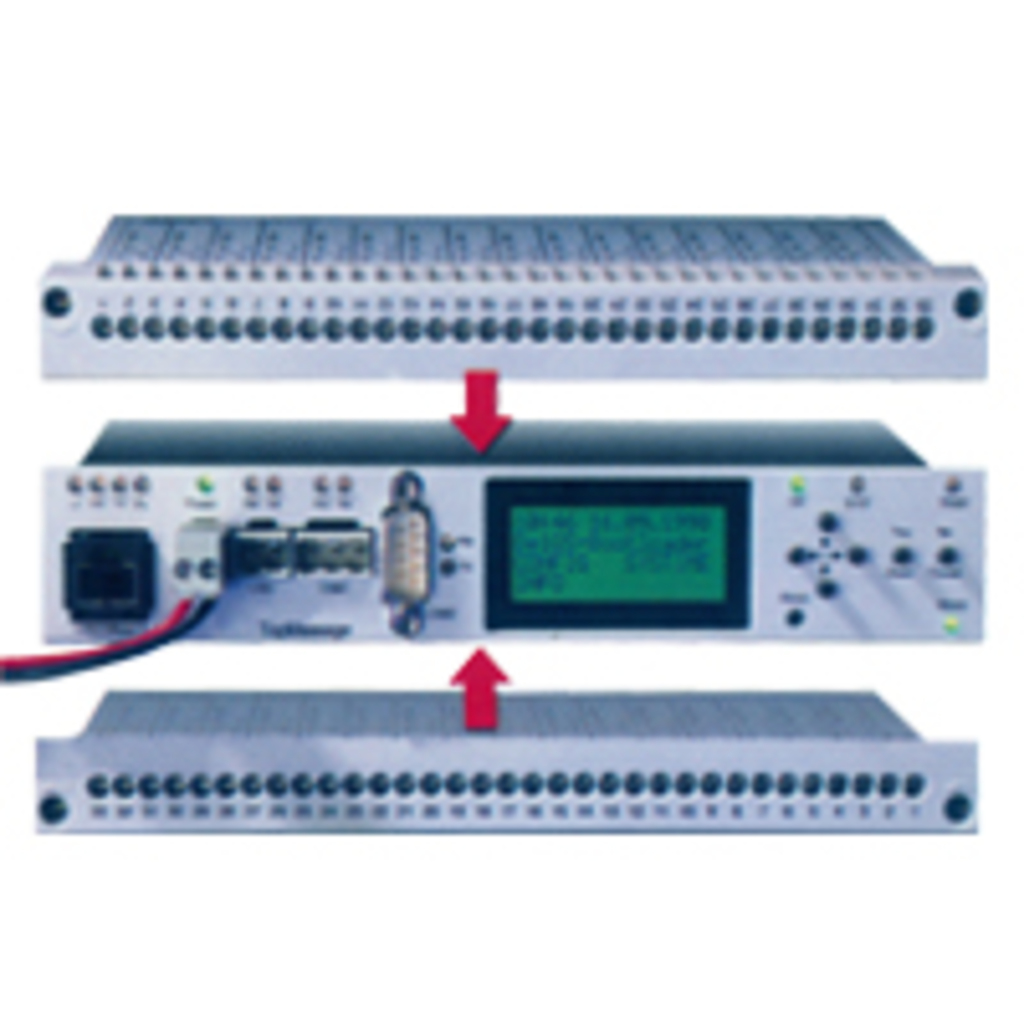

█ 다채널 데이터 분석기(TopMessage)

◆ 개요 (Description)
--------------------------------------------------------------------------------
▶ 마운팅-모듈라 다채널 데이터 분석 기록계 (기본 40channel)
▶ 초당 60~160,000타점(60~160kHz) 데이터 분석기
▶ Compact 디자인, cabinet mounting 모듈라 Laboratory 타입
▶ 모니터링-분석, 실험 및 테스트용 최신 신제품 모델
▶ Online ＆ offline 데이터 모니터링-분석(monitoring and analysis): PC ＆ PLC
▶ 마스터 디바이스 기본 아날로그 40채널(4/8/10/15- I/O Module 조합) 디지털 48채널 입력
▶ 10개 Slave devices 1,000채널 연속 연결 가능 (slave takes place via a CAN bus)
▶ 각 채널 mV / V, mA, thermocouple or RTD 등 다양한 센서 및 신호 연결가능
▶ 아날로그-디지털 신호(I/O Module) 입출력 가능 (frequencies or impulses, PWM)
● 다양한 아날로그 신호 입력: Analog inputs (mV, mA, TE, RTD)
● 아날로그 신호 출력: Analog outputs (mA, V)
● 디지털 신호 입력: Digital inputs
● 카운터 기능: Counter function
● 디지털 신호 출력: Digital outputs
● PWM 기능: PWM function
● 스위칭 디지털 입-출력: Switchable digital inputs/outputs
▶ 24 Bit (≈7 decimal places) 화면표시능력
▶ 정밀도: V, mA: 0.01% / RTD, Thermocouple 0.1% / accumulated value: 0.06 %
▶ 입력단자 노이즈 절연(galvanic isolation)
▶ 설치형 타입, 휴대용 타입, 진동 분석(FFT / frequency spectrum) 선택 가능
▶ COM 시리얼 인터페이스: RS232/422/485, protocol generator for ASCII protocols, ModBus
▶ ProfiBus DP / ModBus channels: ProfiBus-DP slave or ModBus (TCP/RTU) master / slave
▶ 다양한 소프트웨어로 실시간 데이터 분석 및 저장

● Measurement, evaluation: Software “Go”
● Measurement, evaluation, monitoring, operation, observation: Software “Basic”
● Measurement, evaluation, monitoring, operation, observation, automation, parameter / recipe input, reports: Software “Klicks”
● Vibration Analysis: “Vibro”

◆ 제품사양(Specifications)
--------------------------------------------------------------------------------
▷ 화면표시능력(Resolution)
  ● 24 Bit (≈7 decimal places)
▷ 정밀도(Measurement accuracy)
● V, mA 0.01 % of accumulated value
● RTD 0.1 K and RTD 100 Thermocouple 0.1% of accumulated value
● V (ADGT: 110 V MB) 0.06 % of accumulated value
▷ 아날로그 입력(Analog inputs)
● Voltage range: ± 156 mV bis ± 10 V / ± 110 V
● Current range: 0/4~20 mA (max. 500 ΩShunt)
● Thermocouples: all types, Integrated temperature compensation
● Resistance thermometer RTD, NTC und linear resistors up to 10 kΩ(not ADVT)
● Resolution: 24 bit maximum
● Potential isolation
▷ 아날로그 출력(Analog outputs)
● Resolution: 16 Bit
● Potential isolation: 750 V
● Output signal: 0/4~20 mA
● Maximum burden: 650 Ω
▷ 디지털 입력(Digital inputs)
● Potential isolation: 2,5 kV
● LOW: 0~1,5 VDC@0-1,5 mA
● HIGH: 3~90 VDC@2 mA
● Protected against polarity reversal
▷ 주파수/ 카운터 입력(Frequency / counter inputs)
● Potential isolation: 2,5 kV
● LOW: 0~1,5 VDC@0-1,5 mA
● HIGH: 3,5~90 VDC@2 mA
● Protected against polarity reversal
● Measurement frequency up to 30 kHz at TTL-level
▷ 디지털 입력(Digital outputs)
● Potential isolation 2,5 kV
● switching voltage max. 50 VDC@2,5 A
● Integrated inverse diode
▷ LCD화면표시(LCD Display)
● For servicing purposes: 4 rows a 15 characters 4-keys for cursor, enter, esc, and reset
● Displays: Configuration data, channel name, scaled and linear measurement data
▷ 데이터 저장(Data storage)
● Storage partitionable, data compression
●l  Standard: 500 kB; max. 96,000 measurement values
●l  Maximum: 1 GB; 128 million measurement values
▷ 화면표시능력(Resolution)
● COM 1: RS232/485 interfaces
● Physical equipment: 9-pol. Sub-D socket, DIN EN
● ISO 19245-1, switchable interface: RS232/485/422
● Baud rate: RS232: 125 kBaud
● Baud rate: RS485: 6 Mbaud
● Galvanic isolation: 1 kV
● Protocols: TCP/IP, user-defined for connection of
● modems, PC-terminals, displays, ModBus RTU
● COM 2: RS232/485 interfaces
● Physical equipment: 9-pol, Sub-D socket, DIN 41652,
● Part 1 (ISO 4902), switchable interface: RS232/485/422
● Baud rate: RS232: 125 kBaud
● Baud rate: RS485: 6 Mbaud
● Galvanic isolation: 1 kV
● Protocols: TCP/IP, user-defined for connection of
● modems, PC-terminals, large displays, ModBus RTU
● OPTIONAL: COM1: ProfiBus DP slave interface
▷ 이더넷 통신(Ethernet interface)
● Physical equipment:
● RJ45 (8-pol. STP-socket), 10 Base-T (twisted pair, 10
● Mbps, half-duplex), galvanic isolation: 1 kV
● Protocols: TCP/IP, UDP, ICMP
▷ 사용환경 온도(Temperature range)
● Operational: -20 to +60°C
▷ 사용전원(Power supply)
● 12-36 VDC / 12-28 VACeff. / ± 10%, for AMDT 18 VAC/DC
● Power input for master device: < 10 Watt
● TopLab is supplied with wall power supply connection
